Marine Forklift

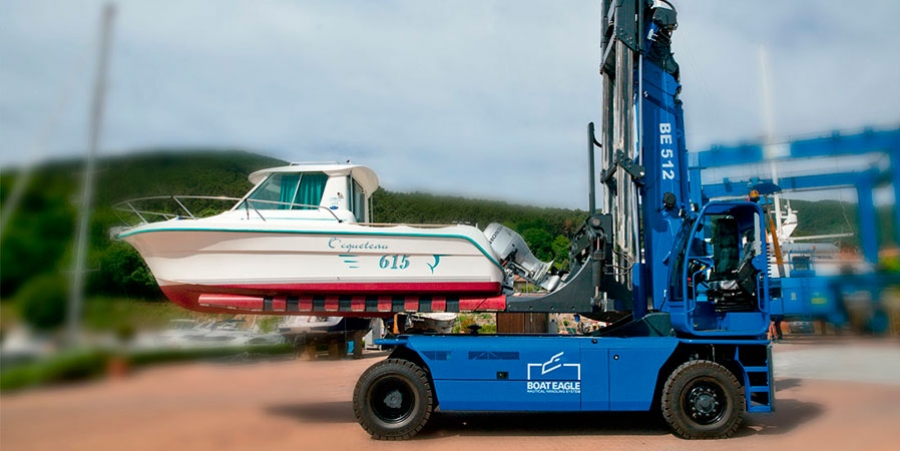

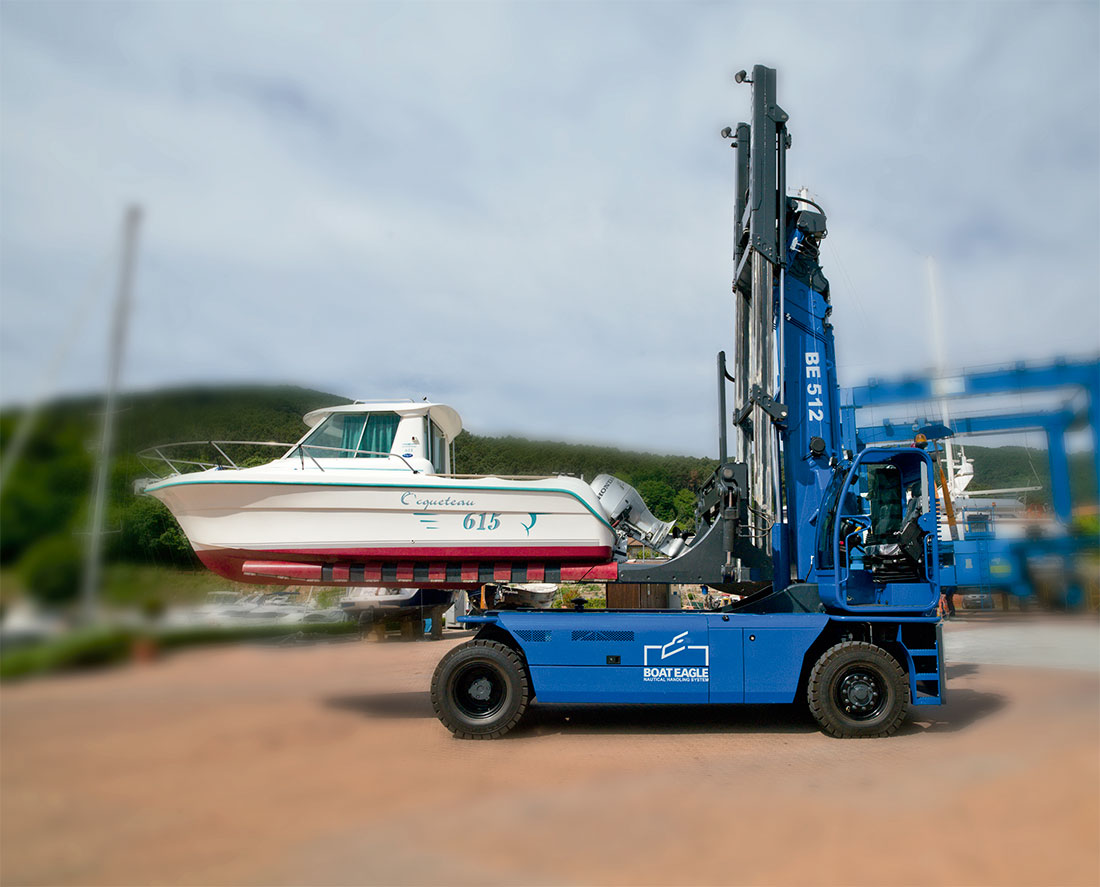

Smart Marinas is the authorized agent for Spain of the company Magni Telescopic Handlers, an Italian manufacturer of the Marine Boat Eagle Forklift. This machine is specially designed for use in dry marinas and dry docks, it has the latest technological advances, making it the most efficient telescopic handler on the market.

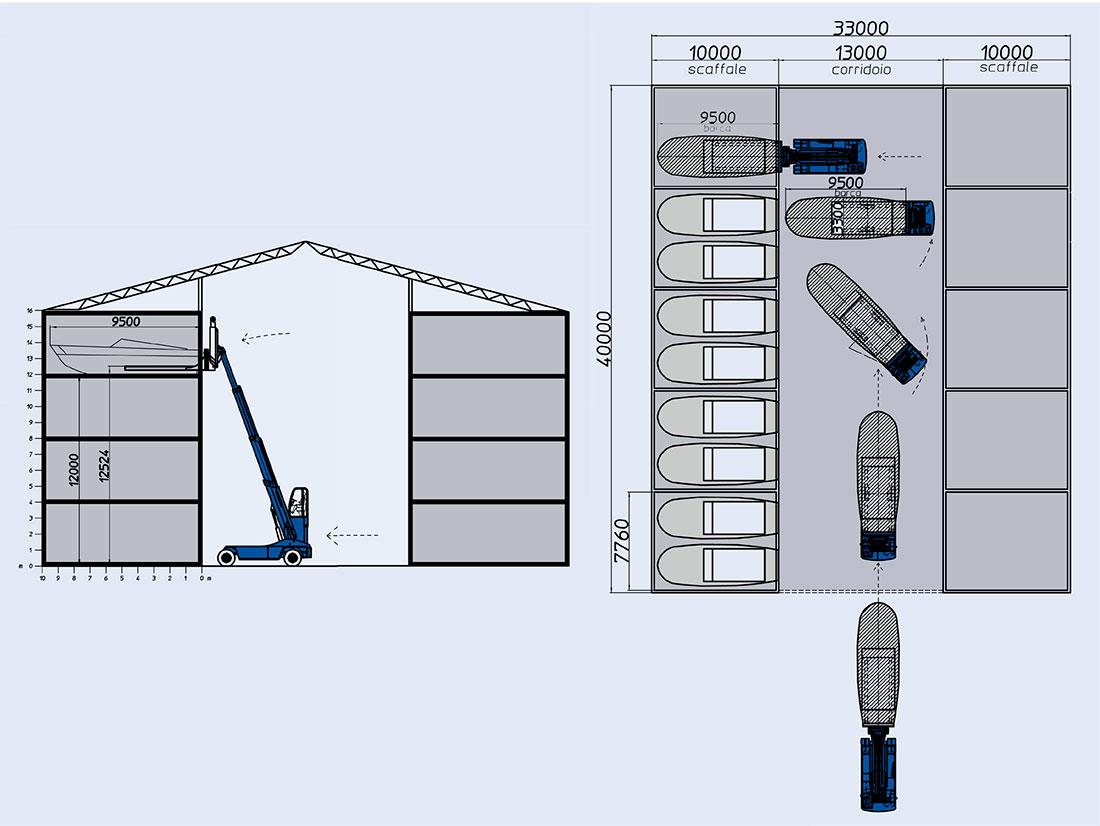

With big combined capabilities; with a large load capacity and lifting height thanks to the patented transport configuration, the Be509 and Be512 allow to work with boats up to 9.5 meters in length (5 TN) and store them in a corridor of only 13 meters wide and up to a height of 12 meters.

The whole machine is protected against marine corrosion with special paints that continue their useful life before the first signs of corrosion of 1500 hours, considering that the machine was constantly in marine fog.

The loading forks are 5,500mm long and are covered in non-slip plastic material.

The forks have an opening that goes from 750mm. up to a maximum of 2,290mm. and move horizontally up to 300mm. and an inclination of 95o.

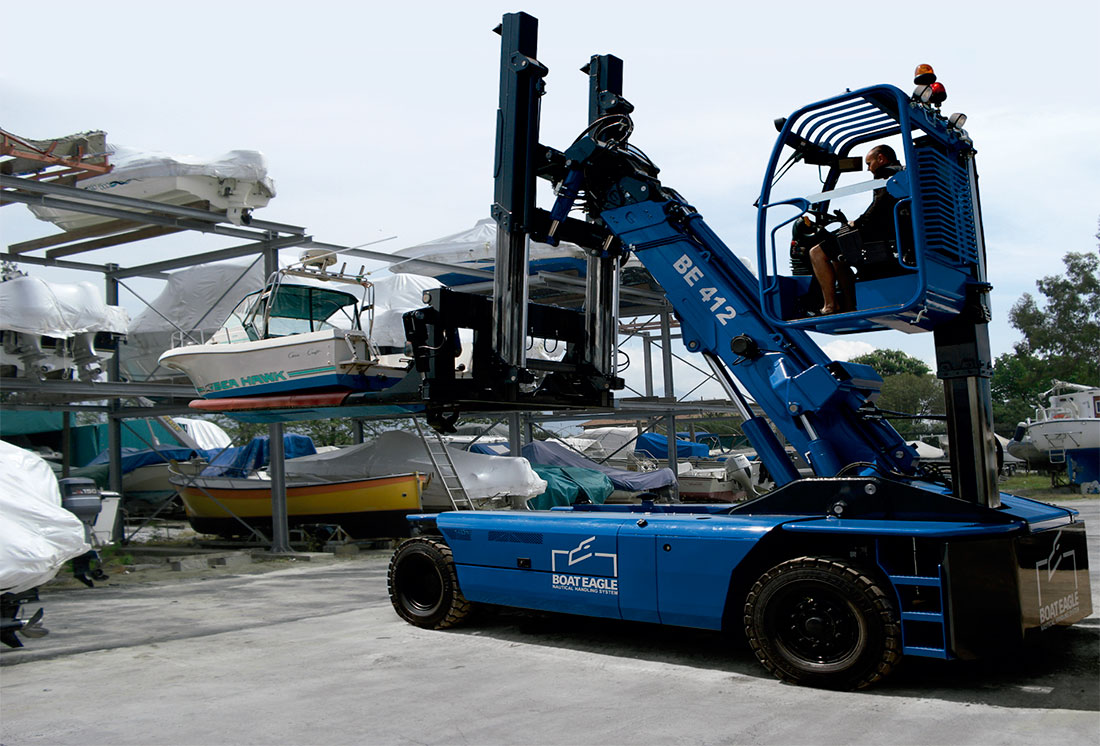

The negative reaches 3.4m It also always has a hydraulically liftable cabin up to 2,999 mm from the ground to give the operator a total and global vision of the movement, achieving a safety and precision never seen before.

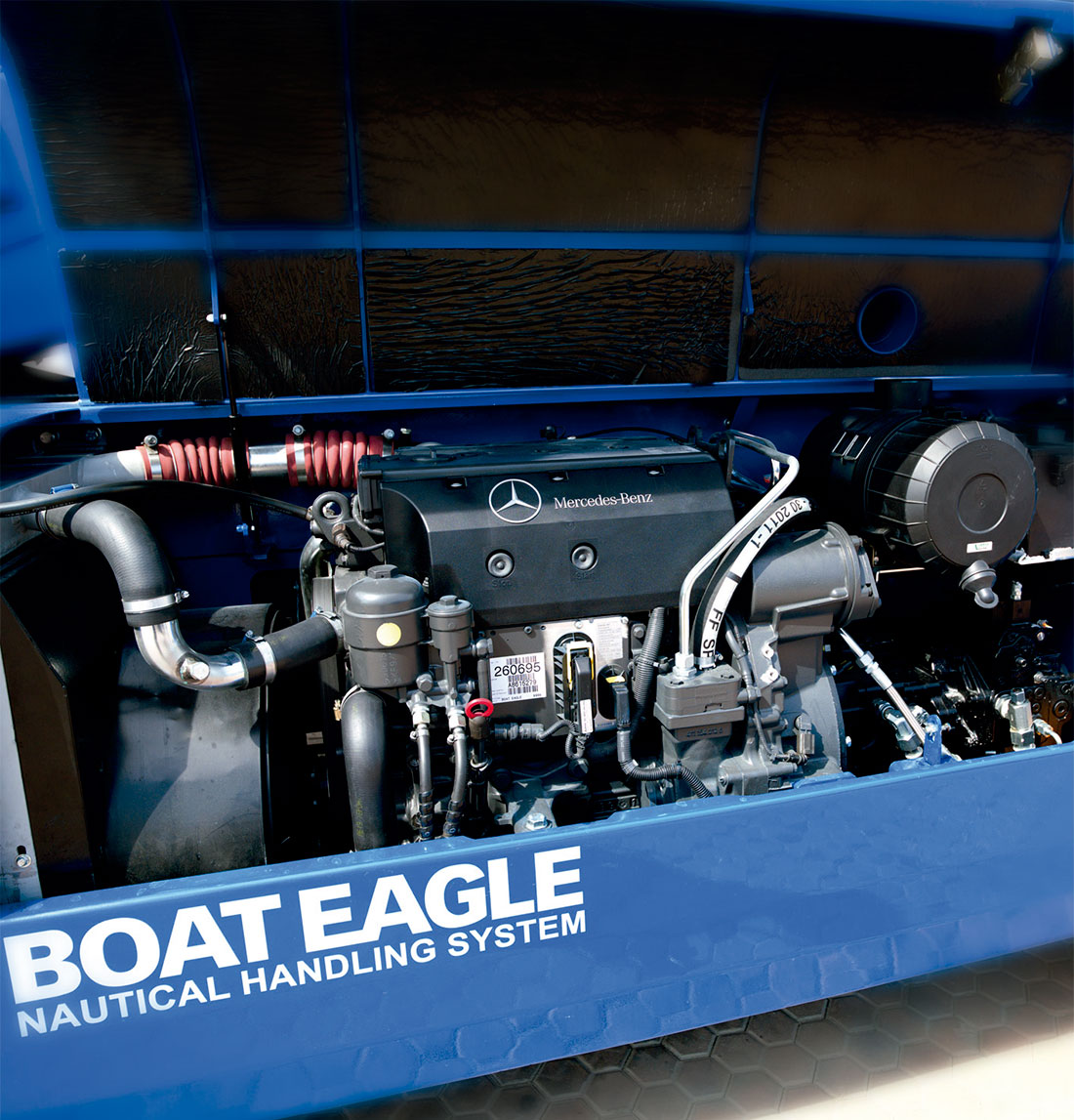

Boat Eagle is equipped with Mercedes motorization with the latest technical requirements and European regulations.

All hydraulic components are Bosch Rexroth.

The cabin has two electro-proportional joysticks to achieve maximum safety, sensitivity, and fluidity of hydraulic movements.

The engine turns up and down automatically based on the efforts requested at each moment, ensuring less diesel consumption and therefore less emissions to the environment.

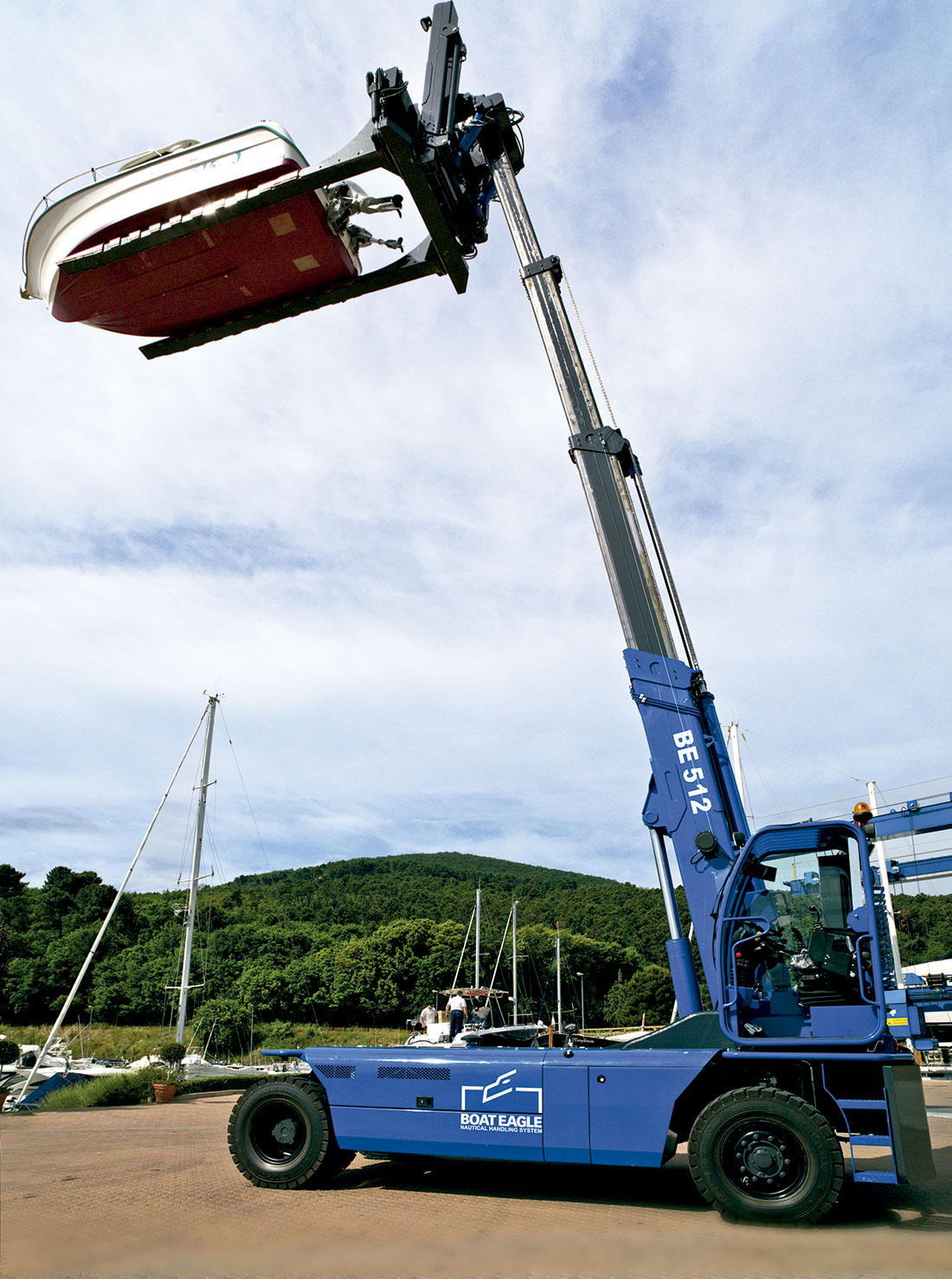

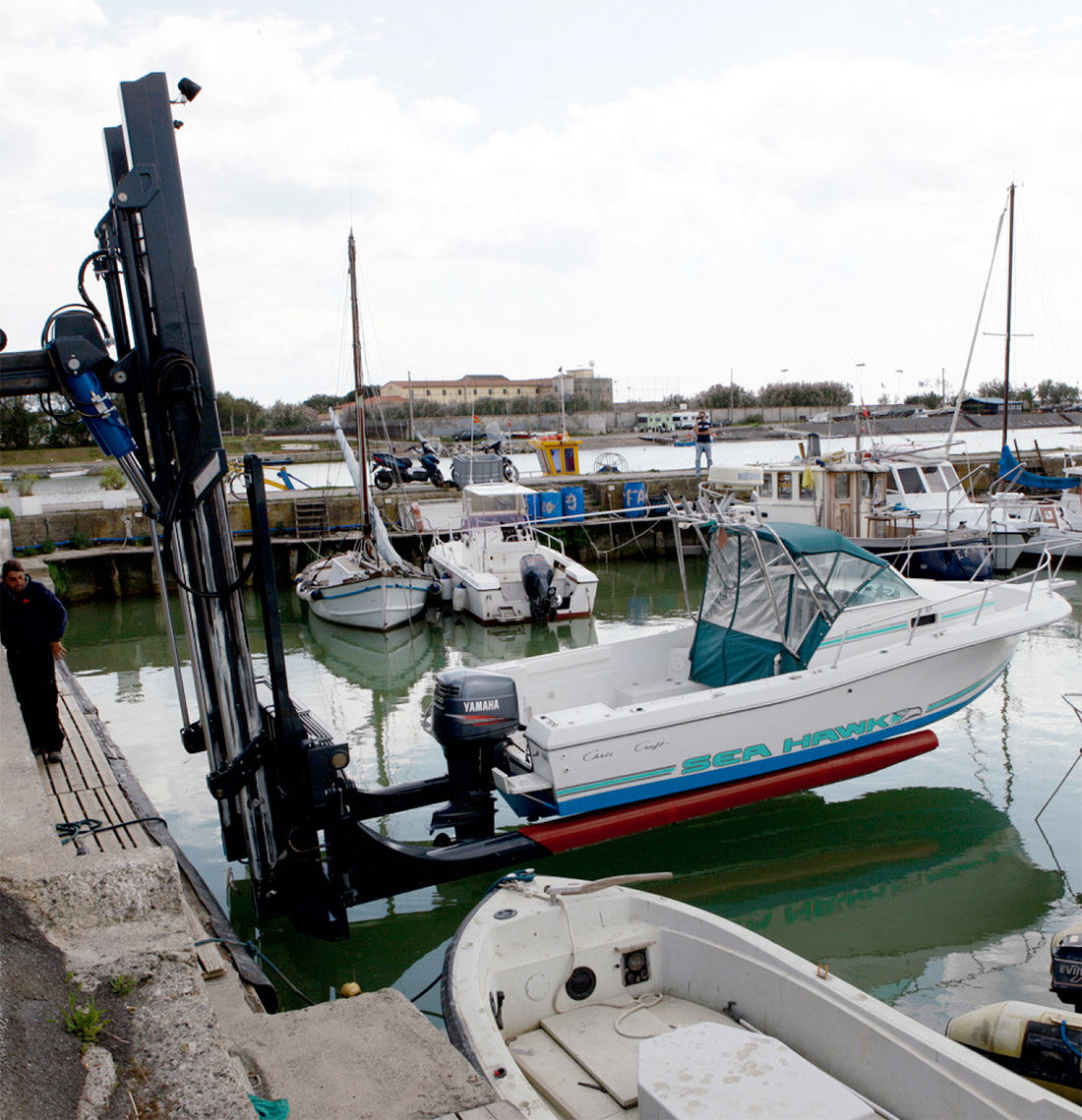

The working arm allows you to overcome large obstacles adjacent to the docks and the water launch area.



Main features:

Payload:
5.000 Kg (to 2500mm from heel)/4.000Kg (to 3.300mm from heel).

Maximum lifting height:
12 meters.


Maximum boom:
8,904 meters.

Forks
Large 5.500 mm

Overture 750mm minim to 2290mm
Horizontal movement up to 300mm +150/-150mm)
TILT 95o (90o + 5o)
Coated with plastic and non-slip material.
Marine anticorrosion paint.

Cabin:
Open extra comfort.

Government:
By means of 2 multifunctional joysticks with proportional electronic control.

Brakes:
Hydraulic multi-disc in oil bath.

Motorization:
Mercedes Type
Om904 LA-turbo-intercooler-air/air
Cylinders 4.250 cm3.

Power; 150 CV. -110 Kw

Empty weight:
22.300 Kg.

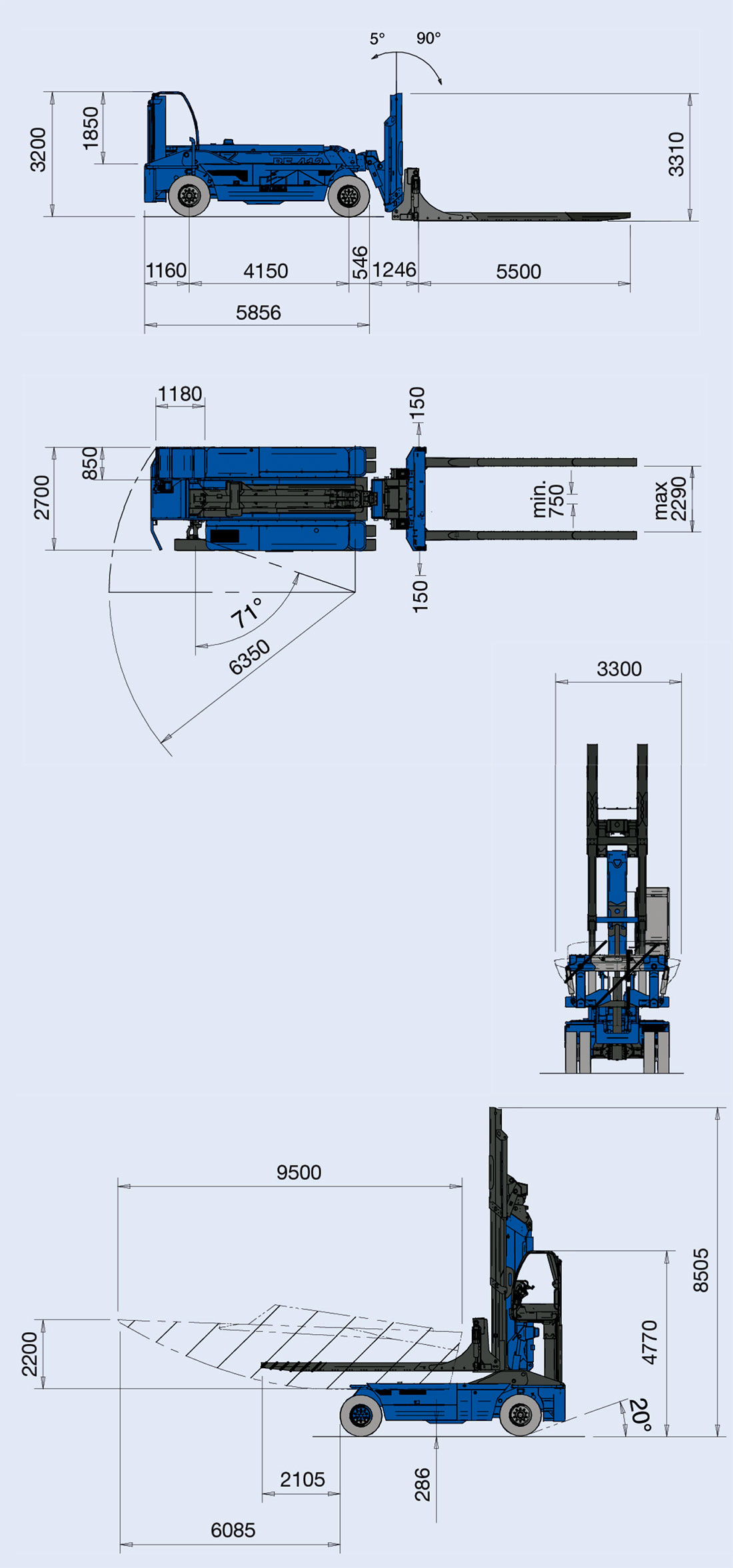

Long maximum:
5.856mm


Long maximum with forks:
12.602mm

Width:
2.700mm

Maximum height:
3.200mm

Turning radius:
6.350mm

Ground clearance:
286 mm


Maximum working slope:
25%



FOR MORE INFORMATION REQUEST SPECIFIC AND TECHNICAL CATALOGUE.
