Stranding elements
View the embedded image gallery online at:
https://smartmarinas.com/en/equipment/stranding-elements#sigProId8d8c744f07
https://smartmarinas.com/en/equipment/stranding-elements#sigProId8d8c744f07
The whole fabrication process meets quality requirements in accordance with the specific following regulations::
- Desing and Project: ISO9001 ISO14001
- Manufacturing : EN1090-1:2009 +A1:2011
- Hot-Dip Galvanized: UNE-EN/ISO1461.
- All products has a metal identification plate for traceability and control.
- Delivered instructions manual.
- Seal certificate duly sealed.
Basic Characteristics:
- Ball joint that allows swing 360º. Easy maintenance and lubrication..
- Strong and functionals pins and pivots.
- Convenient hook to connect the different cradles to créate a solid cradle in safety.
- Easy grip to work on the adjustment screw during the last phase of the keel-block.
- Practical handel to extend the telescope.
Main products:

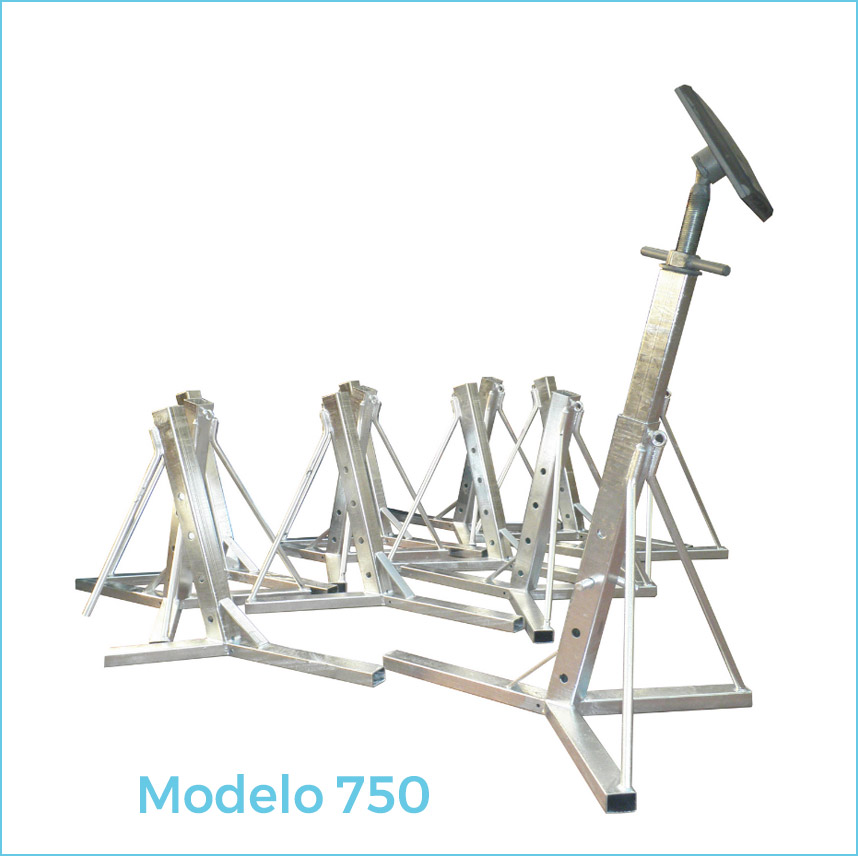

- Model 750: LOAD: 7 Tn./5 Tn. HEIGHT MIN: 1.094 mm. HEIGHT MAX 1.mm.

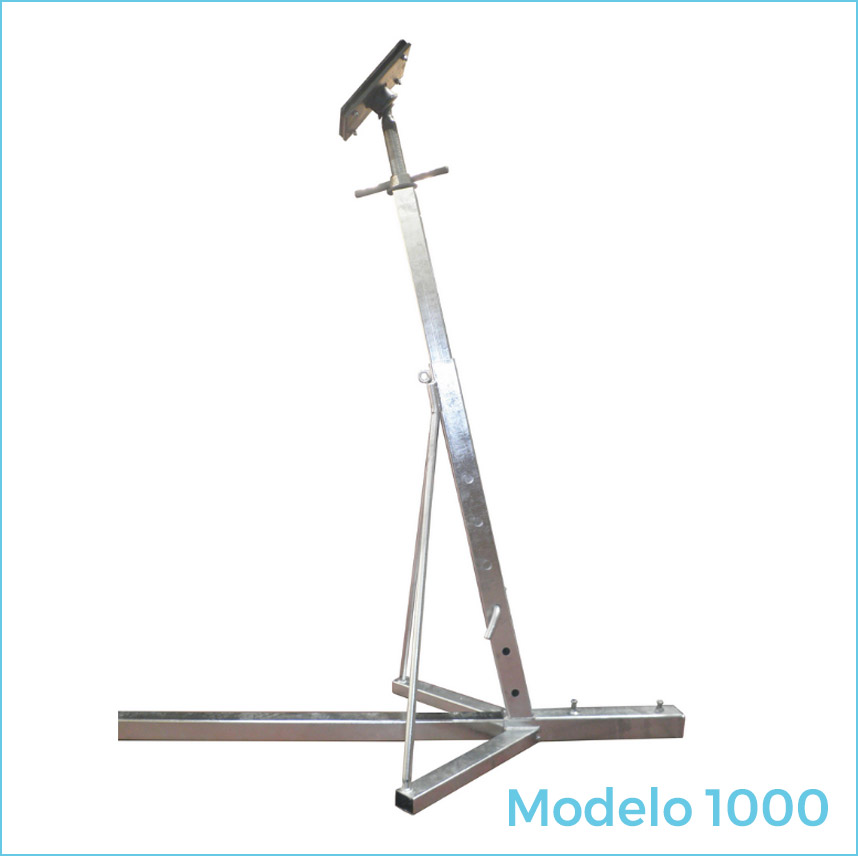

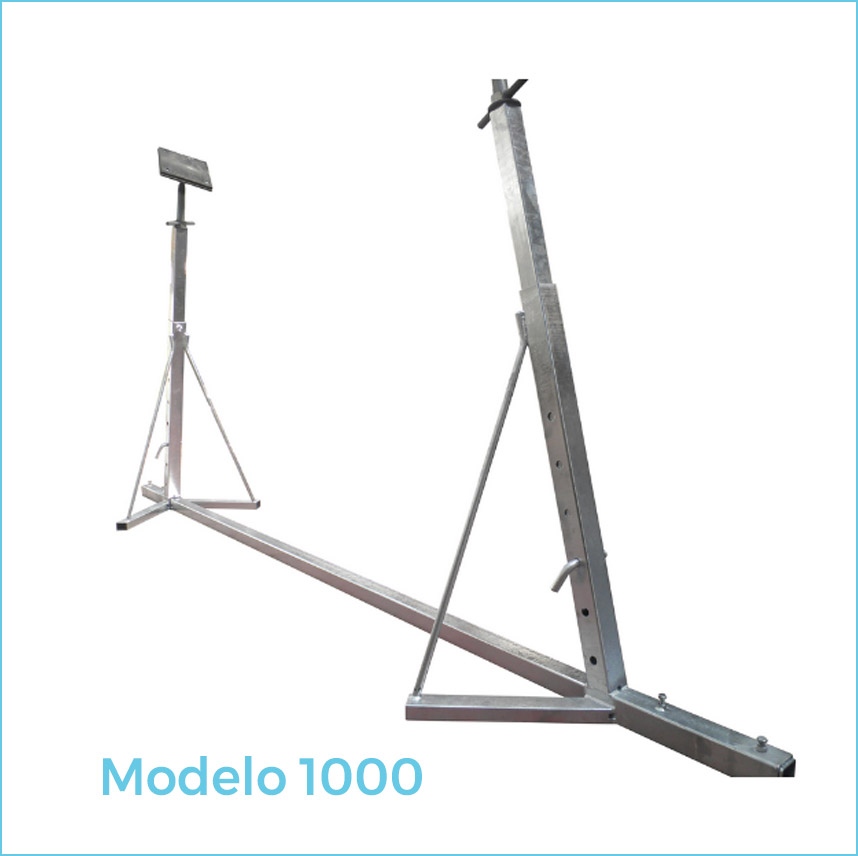

- Model 1000: LOAD: 7 Tn./5 Tn. HEIGHT MIN: 1.694 mm. HEIGHT MAX 2.283 mm. (KIT 2 elements + union bar)

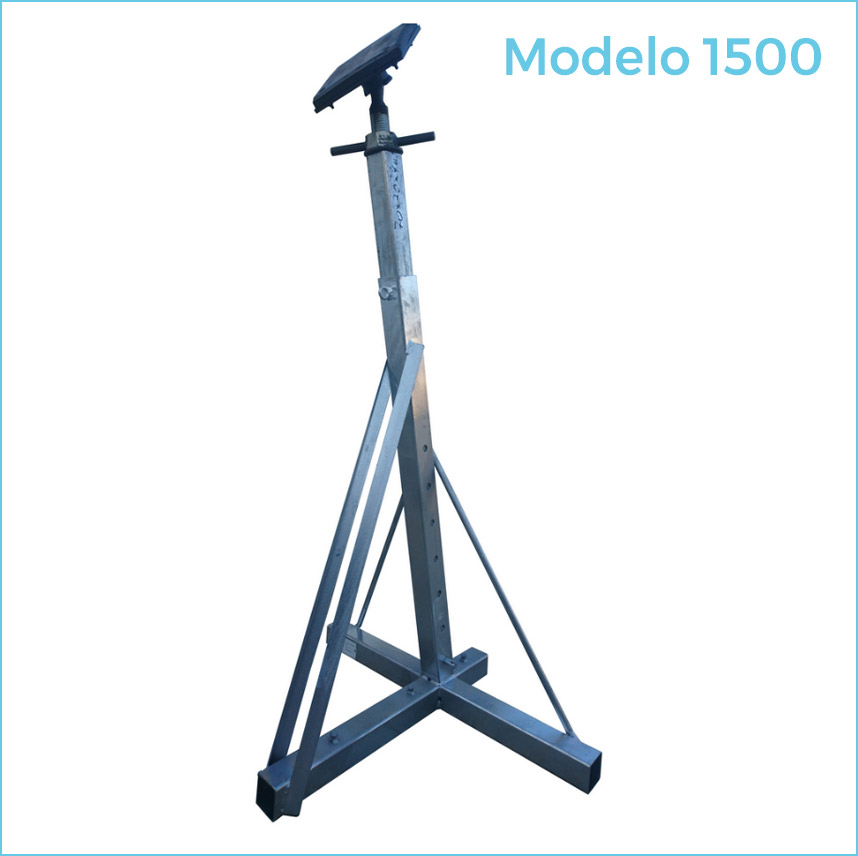

- Model 1500: LOAD: 10 Tn./7 Tn. HEIGHT MIN: 2.209 mm. HEIGHT MAX: 3.014 mm (KIT 2 elements + union bar)

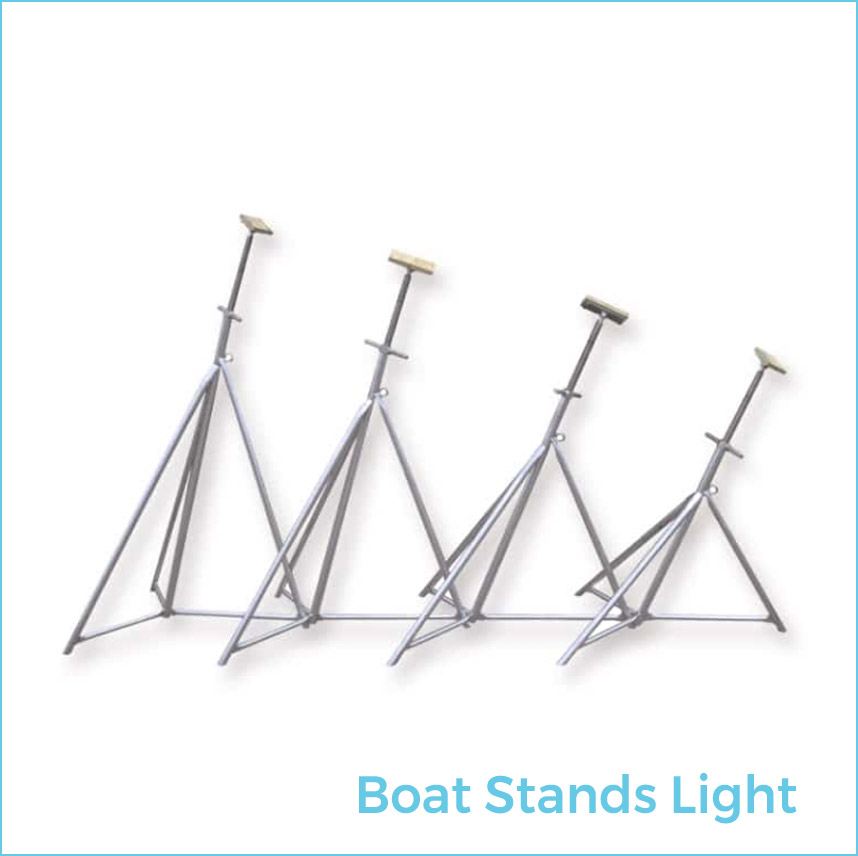

- Boat Stands Light: LOAD 3,5 Tn. inclined. PL1: 1.150 +300 mm. PL2: 1.350 +300 mm. PL3: 1.550 +300 mm

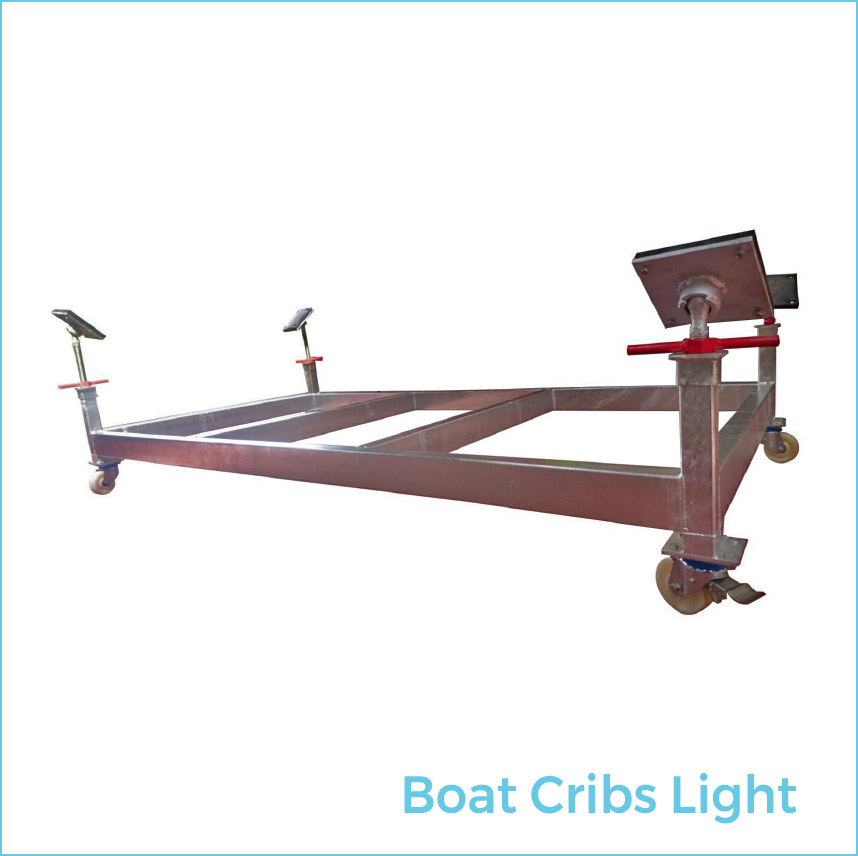

- Boat Cribs Light: LONG: 3.000 mm. WIDTH: 1.500 mm. LOAD: 2.000 KG. 4 WHEELS.

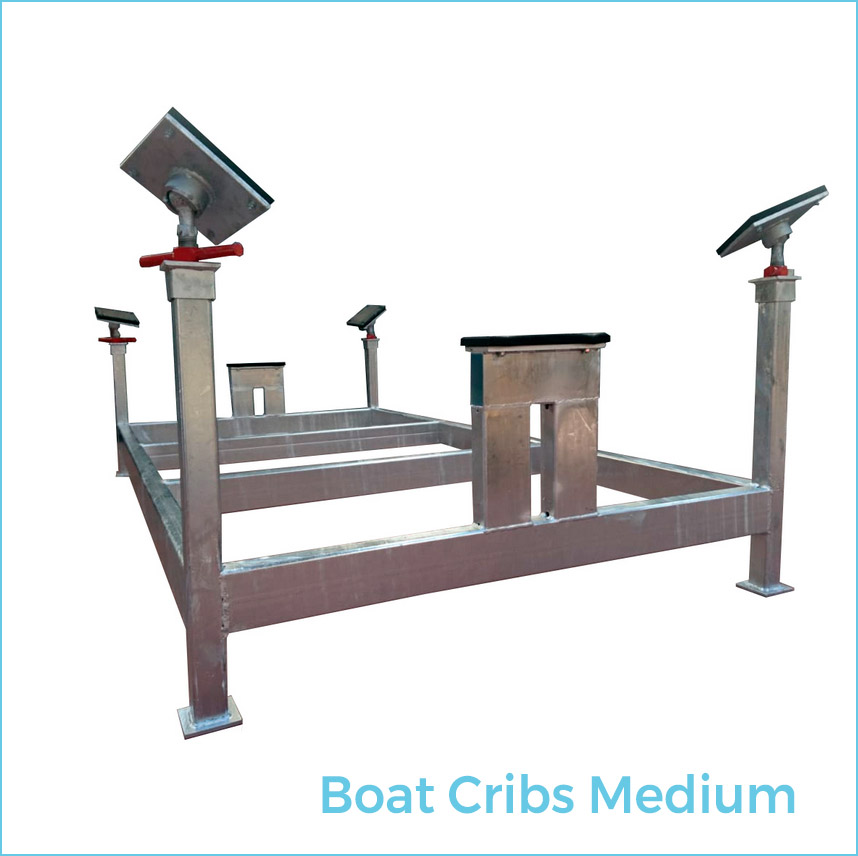

- Boat Cribs Medium: WIDTH: 1.500 mm. LOAD: 3.000 KG. HEIGHT BOW: 700 mm. HEIGHT STERN: 600 mm. 4 telescope screw

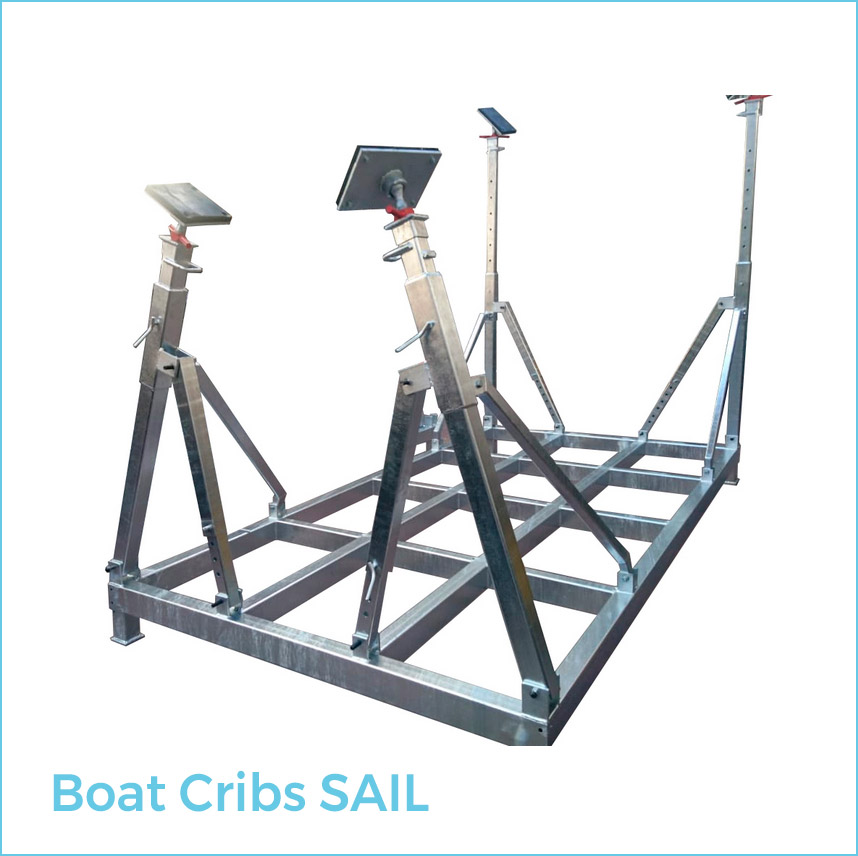

- Boat Cribs SAIL: LONG: 4.000 mm. WIDTH: 2.000 mm. LOAD MAX: 10.000 KG. HEIGHT MÍN: 1.600 mm. HEIGHT MAX: 2.500 mm

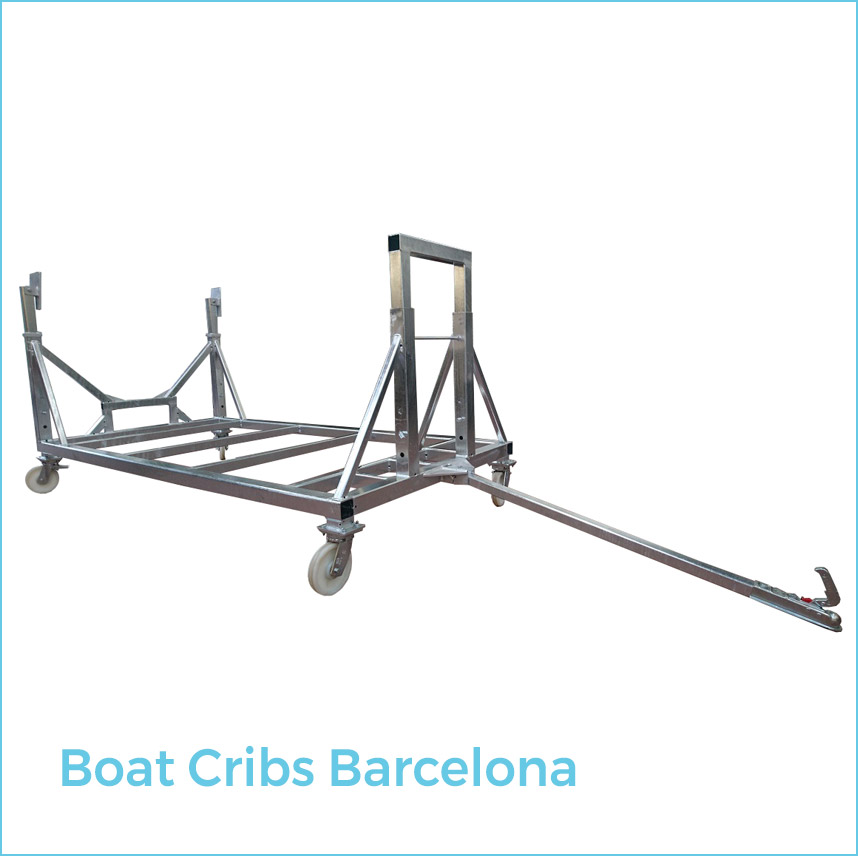

- Boat Cribs Barcelona: LONG: 3.000 mm WIDTH: 1.500 mm LOAD: 3.500 KG. 4 WHEELS

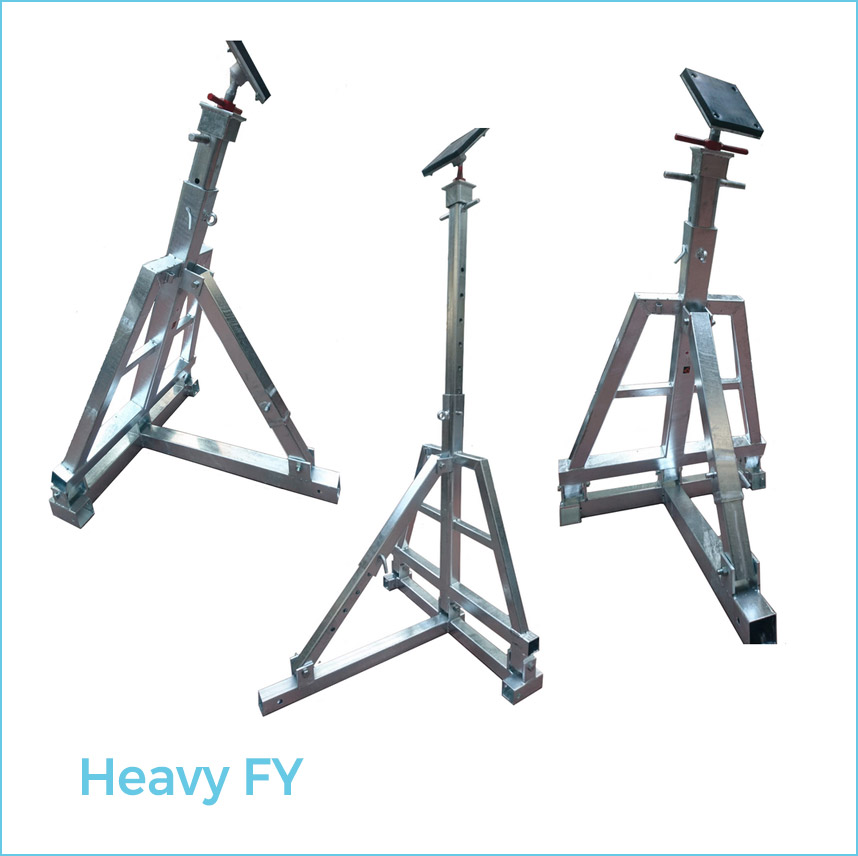

- Heavy FY: FY-30L, FY-30S, FY-12L, FY-12S, FY-10. ADJUSTABLE ANGLE. (Kit 2 elements + unión bar)
